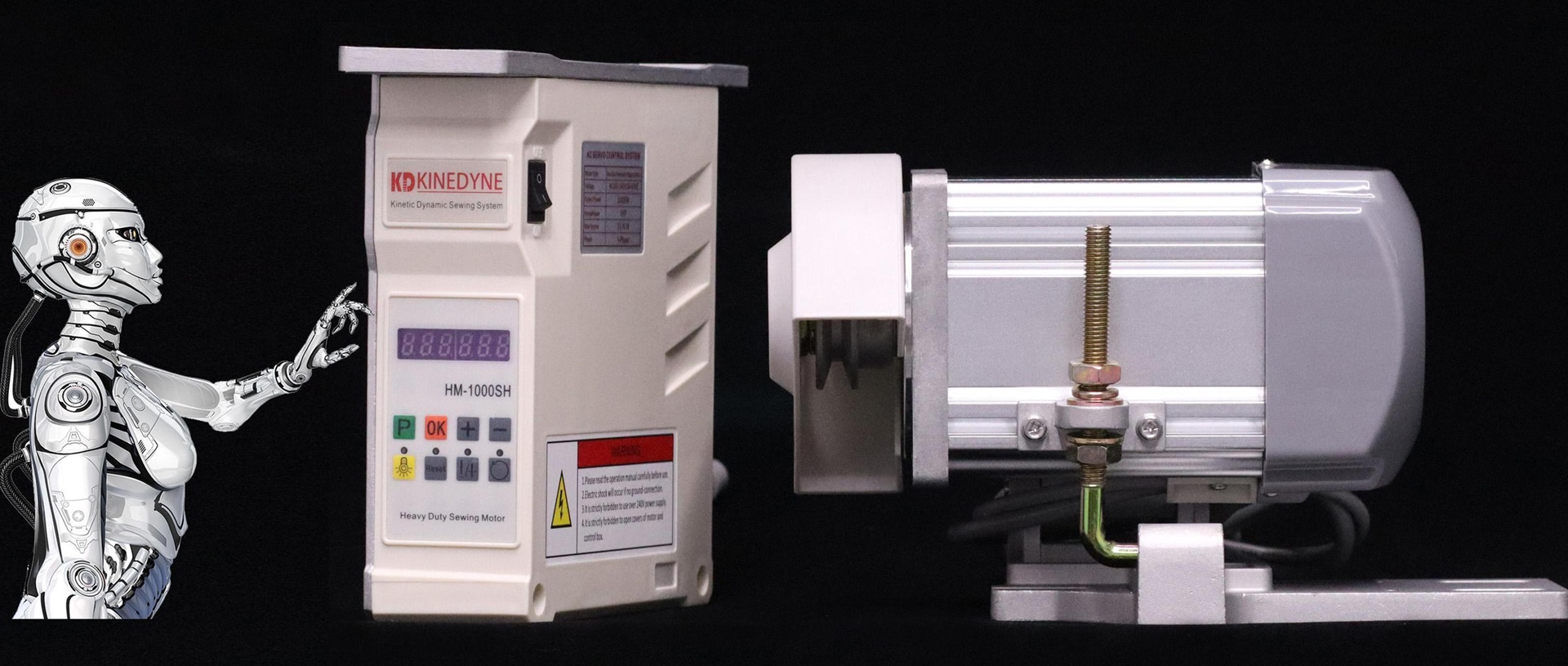

The new generation HM-1000SH motor is available from Kinedyne. This extra powerful heavy-duty electric servo motor delivers crushing torque for industrial sewing machines. The 1000 Watt / 1.3 horsepower motor can drive the most heavy-duty industrial sewing machines and consistently delivers reliable control. This compact servo motor is also capable of handling many functions such as pneumatic foot lift/ reverse stitch, tape cutter, Jog Dial and much more.
It is an excellent replacement of Ho Hsing i90 servo motor, Ho Hsing HVP-90 digital servo motor, and Efka expensive sewing servo motors.

The major advantages:

1. This super powerful servo motor offers an awesome 1000 Watts output power. That is approximately 1.3 horsepower (HP) of performance and power! It can drive any extra heavy duty leather sewing machine without any difficulty.

2. The HM-1000SH electronic servo motor produces an awesome 9 Nm of torque which means extremely strong needle penetration force and better performance in super hard leather and technical textiles.

3. Speed is adjustable by a simple setting (from 50 RPM to 3000 RPM) that allowing you to slow down your machine and sew stitch by stitch. This makes sewing detailed work much easier. Also ideal for beginners. Using either an 750SH high torque motor on heavy thick sewing applications completely eliminates the need for a now obsolete, "Speed Reducer".

4. It allows for a more stable amperage draw, and reduces the energy consumption by an astonishing 60%-80%. Usually the cost of servo motor can be recovered within 2-3 years by saving money on electricity. However the advantage of time savings and labor cost saving will make the actual return on investment faster.

5. Kinedyne needle positioner synchronizer allows you to stop needle in the down AND up position. When you want to pivot the work to change sewing direction, the needle stops in down position for handy fabric movement (will not lose the stitch), sew corners or pivot with ease. At end of sewing, stops needle in up position so that the work can be removed, and thread snipped.

6. Unique two stage speed control to facilitate the sewing operation: half heeling to lift presser foot, full heeling to lift presser foot and needle.

7. Kinedyne servo motor features pure copper coils in the motor winding for better current flow and high-temperature resistance.

8.The mounting base of the Kinedyne servo motor is made of a very thick and strong metal alloy. This base is more than able to withstand the high torque and horsepower which the motor generates. It provides a stable and secure mount for the motor.

9. HM-1000SH adopts Photoelectric sensor (instead of Hall sensor) that assures stable & accurate speed control. These motors run gently and smoothly when motor shifts between low, middle and high speed.

10.The Kinedyne HM-1000SH has one of the most advanced cooling systems in the sewing machine motor industry. The cooling surface is much larger and more effective than other motors of the same class. This allows the motor to run with little temperature increase and also prolongs the life of sensitive electronic components. The net result is a much longer lasting, more reliable motor.

11. The belt guard provides full and complete protection of the motor pulley and belt. This will greatly reduce any chance of operator injury.

12. Kinedyne motor is built to last. It made to the highest quality and exacting standards and materials available. Each electronic board and controller are made of the best quality electronic components, assuring you many years of trouble-free performance.

Applications:

This durable, robust and extra strong servo motor is perfect for all types of heavy duty extra heavy duty leather sewing machines, such as Seiko SLH-2B, Juki TSC-441, Juki TNU-243, Durkopp Adler 204-370, Durkopp Adler 205-370, Seiko CH-2B, CH-6B,CH -7B,CH -8B,TH-6B, -TH8B, Durkopp Adler 969, Durkopp Adler 967,Juki LG-158,Seiko JW-28BL-30, Durkopp Adler 221,CONSEW 2050, CONSEW 754R, 756R, CONSEW 2040, CONSEW 733R, CONSEW 757R
