Heavy duty zigzag sail maker sewing machine
Update Time
2026-05-27 15:46
Views

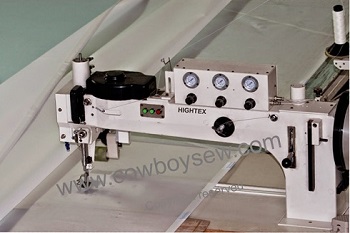

366-76-12HM Long arm heavy duty zigzag sewing machine for sail making
Long and High arm extra heavy weight zig-zag sail making machine designed for straight stitch, 1-step, 2-step and 3-step zigzag operations in the production of large-surface sails using very thick thread size V207 and needle 250. It easily sew 20mm thickness of Dacron, Kevlar, Webbing, Canvas and leather with its adjustable speed, pitch and zigzag action it can take on the largest sails you can imagine, described by the European sail makers as the Porsche of sewing machine, it is without doubt the strongest machine ever produced. The basic mechanics (Shuttle hook, adjustments and timing) is the same with Durkopp Adler 366-76-12 and Durkopp 266-1, therefore it is easier for the sail lofts already worked with these Durkopp Adler sail making machines. This robust and reliable sail sewing machine is designed for mass-production sail making business.
Click here for video from sail loft

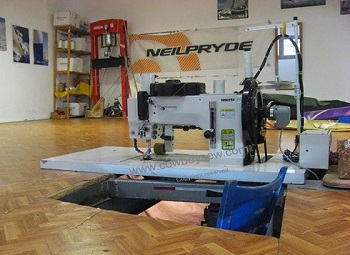

9366-12 Extra heavy duty triple 3-step zigzag sail making sewing machine
It is affordable heavy duty zig-zag sail sewing machine for most sail makers and repairs. Today is there the need for 12mm( zigzag width) 3 step zigzag for seaming bigger sails, it is almost necessary to have an extra heavy duty zigzag sail making machine, which can cover straight stitch, 1-step (2-point), 2-step (3-point) and 3-step (4-point) zigzag. This machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather; Extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches. The basic mechanics (Shuttle hook, adjustments and timing) is the same with Adler 366 and Adler 266, therefore it is easier for the sail lofts already worked with these sail making machines.
Click here for Demo video

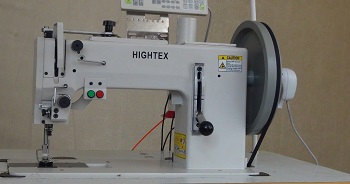

9266 extra heavy duty straight stitch and zig-zag lockstitch sewing machine for sewing webbing to reinforce
Extra heavy duty straight stitch and zig-zag industrial sail making sewing machine is designed for sewing very thick sails, attaching reinforcement webbing into edges and sail corner reinforcement patches, with thick thread V277 and needle 250. This zigzag machine also can be used as heavy duty rope-end bar tacker, to make sewn eyes termination or binding rope thimbles for boat rope, yachting rope, sailing rope and marine cordage. Many sail makers are still using Durkopp Adler 166 or Durkopp Adler 266-1, 9266 is the next choice.
Click here for video from sail loft

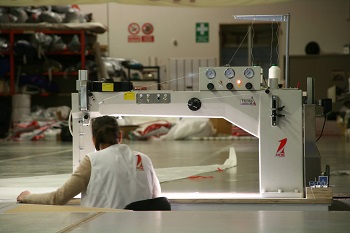

FM366evo: Extra high arm and long arm zigzag sewing machine for large sails -- Made in Italy:
Super high (400mm) and long arm (760mm) heavy duty zigzag sail making machine. Today yachts and boats are getting bigger and bigger, many sail makers and repairs are ready to take on bigger projects and looking for a larger and high efficiency zigzag machine. We developed XL series sail maker sewing machines to meet your needs today as well as tomorrow. The heavy duty belt puller behind the pressure foot helps sail makers create a smooth, even stitch on large sails. The motor is also special, as it provides a large, even torque at any speed. This greatly improves the stitch quality when it is necessary to slow down, or change directions in large sails, or in the heavy patch areas.
HM-750SH Slow Speed Extra Powerful Servo Motor for Heavy Duty Leather Sewing Machines - Perfect Speed Control
Our HM-750SH is the most powerful low-speed, high-torque, and high horsepower electronic servo motor that is able to maintain precise speed, high horsepower and torque control even at the lowest speed setting. In many cases it can completely eliminate the need for a speed reducer. The minimum speed of our slow speed servo motors is 50 RPM only, which translates into less than 20 stitches per minute on the machine. The addition of this incredible motor makes the machine ideal for intricate work or beginners since the machine is far more manageable.
In terms of performance and reliability, HM-750SH is the best leather and heavy duty materials sewing servo motor in the market today!
Click here for DEMO video
