Title: Best leather sewing machine for saddlery
Update Time 2024-04-19 09:12 Views

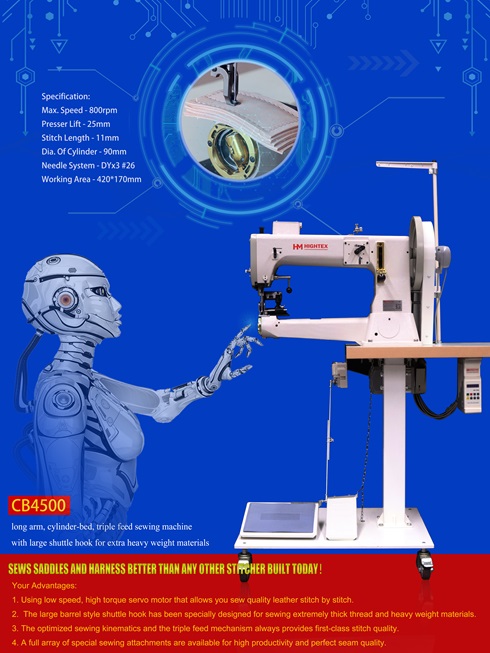

CB4500 The best sale heavy duty leather sewing machine for saddle makers, harness makers, leather crafters and leather goods manufacturers

The major advantages:

1. The special extra large Barrel shuttle hook and bobbin capacity reduces the number of bobbin changes and offers high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, 1300dX3 or T-400);

2. Using low speed, high torque servo motor (Click here for detail) that allowing you to slow down your sewing machine and sew stitch by stitch (eliminates the need for a now obsolete, "Speed Reducer");

3. The presser foot has an extra high lift and can go up to 25mm, allowing for a large range of extra heavy weight material or bulky items to be used;

4. Special flatbed tabletop attachment available that allows the cylinder arm sewing surface to be converted to a flat sewing surface to allow for better stitching with certain types of work;

5. The compound feed mechanism of this machine features a feed dog, walking foot, and needle feed that all work in unison to insure feeding of the most difficult materials with ease;

6. This leather stitching machine features a heavy duty cylinder arm shape which helps in the production of 3-dimensional items;

7. The 12 inch Mega Flywheel of this saddle and harness sewing machine is to create more torque for very hard and rigid leather for saddle makers and harness makers;

8. The height adjustable Pedestal stand (Space saver) allows the machine bed to stick out from the left hand side of the table allowing an opening or free arm advantage;

9. A full array of special sewing attachments (Click here for detail) are available for high productivity and perfect seam quality;

10. Most importantly, critical areas have been given a golden coating of Titanium Nitride, the super hard ceramic finish. Titanium Nitride coatings allow the parts to last up to 3 times longer than normal.


Applications:

This leather sewing machine has become the standard in the saddle and harness industry. It has been widely used for stitching bullet loops, saddle skirts, headstalls, halters, breatstcollars, holsters, knife sheaths, chaps, knee pads, covered stirrups, gun belts, cases and other leather crafts.
The machine can also be used to sew sofa and armchairs, shoes, car mats, leather belts, luggage, suitcases, heavy hand bags, lifting slings, safety harness, briefcases, and the like.

Click here for DEMO video                     Click here for video from saddlery workshop                            Click here for hand stitcher
