Title: Special equipment for CB4500 saddlery sewing machine
Update Time 2019-04-12 15:50 Views

Watch video on youtube:

Click here for Demo video

How to oil your Cowboy CB4500

How to thread your Cowboy CB4500

How to adjust thread tension

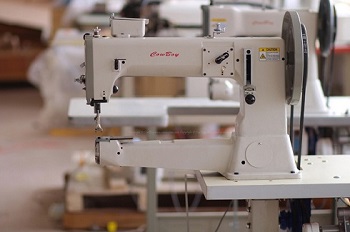

The Cowboy CB4500 is our number one selling heavy duty harness stitcher. The leather sewing machine features an extra large barrel style shuttle hook which is the same hook used in the Durkopp Adler 205-370 and Juki TSC-441.
This leather sewing machine widely used in manufacturing of saddles, harness, safety belts, shoes making, sheath, footwear, sofa, furniture upholstery, heavy and light tack, tire covers, footballs, punching bags, boxing bags, golf bags, baseball bags, softball bags, filter bags, handbag, fiber slings, lanyards, industrial safety products, military webbing, hoists. .

A full array of attachments are available for improving high productivity and perfect seam quality. Below special sewing parts also fit to CowBoy CB3500, Juki TSC-441 and Seiko TH-8B heavy duty sewing machines for the leather and tack trades.


#HT-MC01 Material Guide / Edge Guide: easy to make sure straight stitch.


#HT-MC02 Suspending edge guide (drop down guides): get stright stitches with a guide that flips up and out of the way when not in use - never needs removed.


#4500F-A1 Double toes harness maker's foot (standard assembled on machine): curved design allows closer stitching around edge of hardware. Smooth bottom will not mark leather


#4500F-A2 Narrow center foot (standard assembled on machine): helps to get close to spots, great for detailed sewing work


#4500F-A3 Open toe center foot: allows you to see exactly where your needle point is at all times


#4500F-A4 Inside walking foot with groove: the groove underside avoid pressing on thread (for example braided thread) during sewing operation, guarantee perfect finish.


#4500F-A5 Left-toe presser foot: great for close stitching on the right side


#4500F-A6 Right-toe presser foot: great for close stitching on the left side

Note: A1, A5 or A6 must work together with A2, A3 or A4, when order please be sure a pair of "A" class press foot.


#4500F-B1 Outside blanket foot (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabric and webbing.
#4500F-B2 Center blanket foot (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabrics and webbing.
Note: B1 must work together with B2, when order please be sure a pair of "B" class press foot.


#4500F-C1 Left-edge presser feet: narrow toe foot that provides the most visibility around the presser foot and allows you to sew along the edge of your leather


#4500F-C2 Right-edge presser feet: narrow toe foot that provides the most visibility around the presser foot and allows you to sew along the edge of your leather


#4500F-C3 Center walking foot for paddle feet: creates a groove in the leather and lays the stitch in that groove for a tighter pull-down stitch

Note: C1 or C2 must work together with C3, when order please be sure a pair of "C" class press foot.


#4500F-D1 Inline foot set: allows you to sew inside narrow channels and very close to an edge, step, or buckle.


#4500F-E1 Cord piping foot set: designed to handle large welting that the standard piping foot cannot walk over.
Click here for DEMO video


#4500D-1 Blanket feed dog (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabrics and webbing


#4500D-2 Non-teeth feed dog (standard assembled on machine): avoid marks when sewing leather goods and upholstery.


#4500N-1 Slotted needle plate: avoid mark on the underside leather for some items.


#4500N-2 Stirrup plate: provides a raised surface and will allow you to sew right up against the left side of the machine. Ideal for covering stirrups and shoe welts


#4500N-3 Holster plate: provides a raised surface and will allow you to sew right up against the left side of the machine. Perfect for stitching holsters, handbags, pouches and even shoe welts.


#4500N-4 Saddlery needle plate: this flat-top throat plate is very helpful to sew straight.


HT-SP03 Bearing drive Speed Reducer: give more torque and greater stitching control


HT-BF01 Heavy duty leather binder attachment: it is simple and economical hevy duty binding attachment, for binding operation of leather cutting edges, in the production of leather hand bags, shoes, carpets and car rugs etc.
Click here for DEMO video


HT-BF02 Movable binder: it is vibrating binder attachment and due to this feature, a beautiful tape binding finish for heavy materials or elastic tape can smoothly and easily be performed. This Binder kit can work with Juki TSC-441 leather sewing machine.
Click here for DEMO video


#HT-TA03 Special flat work table platform: allows the cylinder arm sewing surface to be converted to a flat sewing surface to allow for better stitching with certain types of work.


#HT-TA03B Flat table top attachment: same as #HT-TA03, but it is smaller and easy to install, create a flat sewing surface to allow for better stitching with certain types of work.


#HT-079 LED work light: 80 watt Hi-Intensity LED working light with heavy duty "C" type clamp, suitable for any heavy duty industrial sewing machine


If you are interested in becoming CowBoy heavy duty leather sewing machine dealer or distributor, please contact us at
